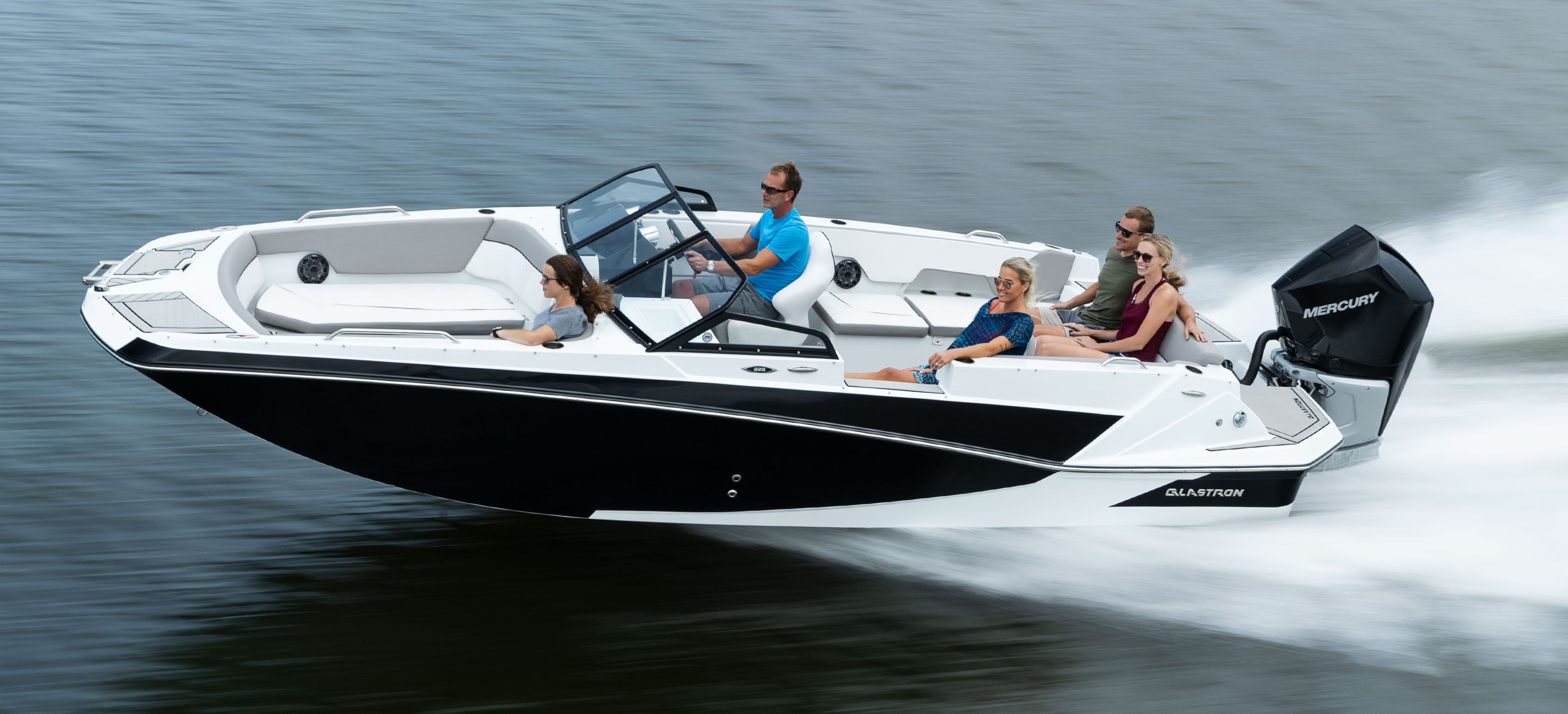

Deck boaters are in for a treat with the all-new GTD 220. This 22' boat explores widened floor plans and multiple cockpit configurations, allowing owners to experience spacious versatility on a whole new level. The expertly designed dash ensures you ride in style every time you decide to hit the water and space for 13 with the storage to match guarantees you have a spot for the entire family and friends!

Specifications

L.O.A 22' 3" 6.8 m
Beam 8' 6" 2.54 m
Fuel Capacity 52 gal 197 L
Approx. Draft Up 17" 43 cm
Approx. Draft Down 34" 86 cm
Maximum Capacity 2700 lbs 2700 kg
Persons Capacity 13 13
Approx. Boat & Engine Weight 3600 lbs 1633 kg
Max HP 250 186 kW
Deadrise 17° 17°
Bridge Clearance w/ Arch or Tower 7' 2" 2.2 m
Water Capacity 12 gal 45 L
Storage Length on Trailer 22' 5" 6.8 m
Total Height 5' 5" 1.7 m
Total height on Trailer 7' 2.1 m
Trailer Weight Tandem Axle 1095 lbs 497 kg
Bridge Clearance 4' 2" 1.3 m
Persons Capacity CE 10 10
Height on Trailer w/Wakeboard Tower Dn 7' 2.1 m
Height on Trailer w/Wakeboard Tower Up 10' 1" 3.1 m

Standard Features

Hull Color

  • White w/ Crimson Red

Interior Color

  • Cognac

Cockpit

  • Assist handle(s), synthetic
  • Courtesy light(s)
  • Fiberglass liner, skid-resistant, self-draining
  • Walk-thru transom
  • Water intrusion management system
  • Cooler, carry-on
  • Seating, cockpit, U-shaped
  • Beverage holder(s), synthetic
  • Trash receptacle(s)
  • Interior color scheme, choice of color
  • Ski locker, in-floor, molded fiberglass finish, w/mat
  • Cockpit access, w/ step, port
  • Storage, bow & cockpit, beneath seats
  • Coaming pads w/ rich hand-fitted vinyl & comfort padding
  • Seating, ComfortRide, flip-up bucket bolster(s)
  • Storage, cockpit sidewall
  • Upholstery, premium contoured vinyl w/ custom detailing
  • Seating, bow cushions, hinged
  • Port console w/ cooler
  • Seating, port lounge w/ removable backrests

Hull and Deck

  • Bow and stern eyes, stainless steel
  • Cleats, stainless steel
  • Fiberglass stringer system
  • Horn
  • Ladder, bow, wide-step, hidden, telescoping
  • Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
  • Navigation lights, LED
  • Swim platform, bow
  • Windshield w/ walk-thru, full-height
  • Ladder(s), stern, wide-step, hidden, telescoping
  • Anchor locker w/ lid, latch & tie off
  • Rub rail w/ stainless steel insert
  • S.S.V.® Hull
  • Winning Edge Protection Plan
  • Swim platform, stern
  • Exterior color scheme, choice of color

Helm

  • Emergency engine shut-off
  • Custom gauges, fog-resistant
  • Steering wheel, deluxe, tilt
  • Dash, carbon fiber panels & gauge tubes
  • Instrumentation, helm: multifunction digital gauges w/hour meter & GPS speed
  • Lighted switches, LED

Entertainment

  • Speakers (4)
  • Stereo, w/ AM/FM radio, Bluetooth® & auxiliary input

Engine / Systems / Drive

  • Bilge pump(s), automatic
  • Outlet, USB charge port(s)
  • Hydraulic tilt steering (std on 150 hp and up)
  • Hour Meter

Trailer

  • Glastron® custom-matched trailer, brakes, tandem axle
  • Swing-away tongue
  • Jack-stand, heavy-duty
  • Self-centering bunks
  • Submersible lighting, LED
  • Wheels, aluminum

Power Options

  • Mercury® 150XL Four Stroke

Options

Tow Sports

  • Ski tow pylon, removable
  • Board racks, pair, tower mount
  • Wakeboard tower, hinging

Canvas

  • Bimini top w/ changing room
  • Bimini top for wakeboard tower w/ changing room
  • Cover, bow & cockpit (2-piece)

Trailer

  • Trailer delete
  • Spare tire & wheel
  • Glastron® custom-matched trailer, galvanized w/ GatorHyde®, brakes, tandem axle

Power Options

  • Mercury® 200XL Four Stroke DTS
  • Mercury® Verado 250XL
  • Yamaha® F200 XB
  • Yamaha® F250 XB
  • Mercury® 200XL Four Stroke DTS White
  • Mercury® Verado 250XL White
  • Yamaha® F150 XB

Hull and Deck

  • Docking lights, LED
  • Windlass w/rope, chain & anchor
  • Swim platform mat(s), espresso / teak
  • Swim platform mat(s), titanium / black
  • Port console w/ removable backrest & windscreen
  • Shower, transom & bow (includes sink port console)

Cockpit

  • Cushions, bow fill-in
  • Table, w/mount(s)
  • Flooring, reed mat, dune (tan), removable
  • Table, w/mount(s) bamboo
  • Flooring, reed mat, ash (grey), removable

Helm

  • Steering wheel, premium upgrade, tilt
  • Fish finder

Engine / Systems / Drive

  • Mercury, Vesselview mobile
  • Trolling motor, 24 volt
  • Battery single w/ on-off switch
  • Mercury, power steering (requires 200 hp Four Stroke)

Head / Changing Compartment

  • Head, pump-out porta pottie w/ privacy curtain (N/A w/ Fishing package)
  • Head, porta pottie w/ privacy curtain (N/A w/ Fishing package)

Console / Cabin

  • Porta Pottie
  • Porta Pottie, pump out

Packages

Premium Sound Package

  • Lighting package, RGB
  • Stereo remote w/display at transom
  • Subwoofer, Kicker®
  • Speakers, upgrade (4)

Fishing Package

  • Casting platform, bow
  • Rod storage, ski locker
  • Baitwell/Livewell, aerated
  • Trolling motor, 24 volt, pre-rig
  • Beverage holder(s)/rod holder(s) combos
  • Fishing seat(s)
  • Trolling motor mounting plate

XL Package (Dune)

  • Flooring, reed mat, dune (tan), removable
  • Assist handle(s), stainless steel
  • Beverage holder(s), stainless steel
  • Bow scuff plate
  • Depth gauge w/ water temp
  • Cleats, pull-up

XL Package (Ash)

  • Flooring, reed mat, ash (grey), removable
  • Assist handle(s), stainless steel
  • Beverage holder(s), stainless steel
  • Bow scuff plate
  • Depth gauge w/ water temp
  • Cleats, pull-up
This information is for reference only, and the actual design, specifications, and options may vary from the photos and other information shown. Contact your dealer for more information.
For a complete list of features, options and available power, see an authorized Glastron dealer for additional details. glastron.com
